Description
AQUAMAX

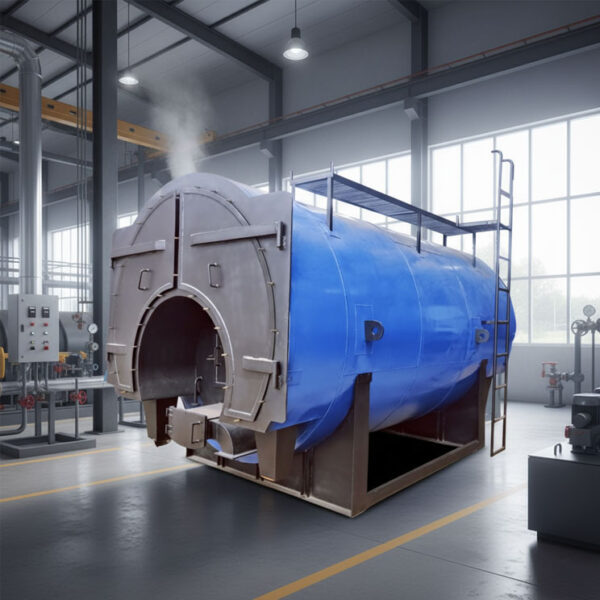

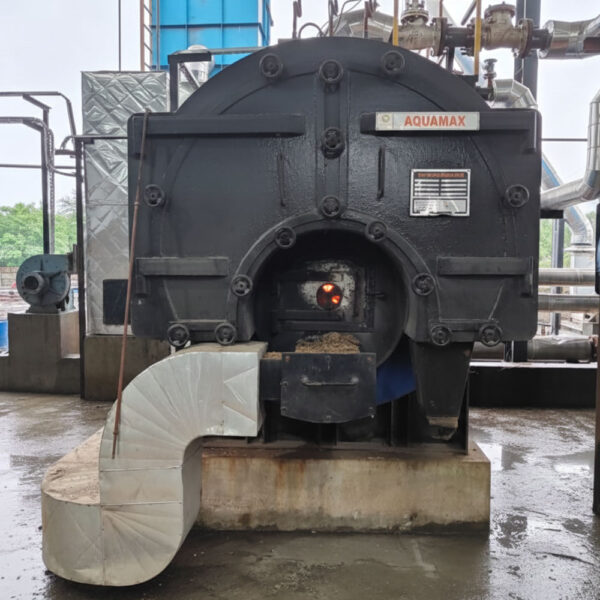

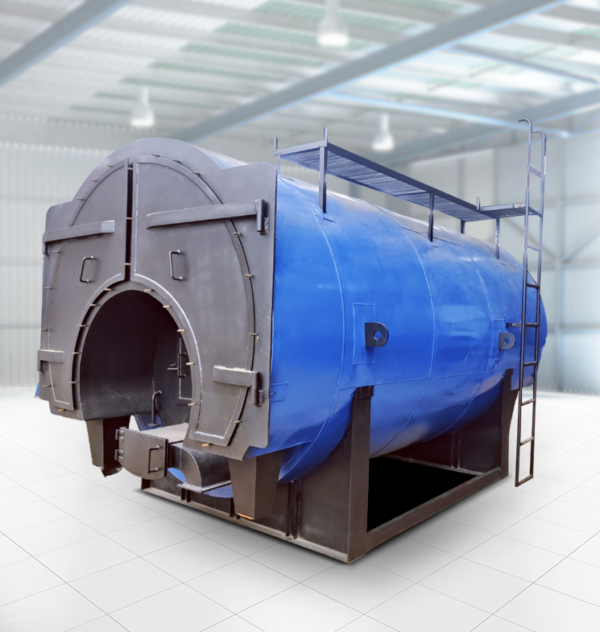

AQUAMAX is a Fully Wet back, Three-pass, smoke tube hot water boiler that can be fired on wood and Biomass Briquette. The hot water boiler has a Horizontal Plain furnace all along its length. The front end and shell rear end are closed with the help of tube sheets. The flue tubes are fitted between the front and rear tube sheet. The flue tube opens into the smoke chamber. The rear door when opened, gives total access to the furnace and smoke tubes.
Operating Range
- Capacity – 4 lac Kcal/Hr. to 20 lac Kcal/Hr.
- Fuel- Wood Log, Biomass Briquette
- Temperature- up-to 90℃ and special design up-to 160℃
Technical Specifications
| Specification | Unit | AQM-10 | AQM-20 | AQM-30 | AQM-40 | AQM-50 | AQM-60 | AQM-80 | AQM-100 | AQM-150 | AQM-200 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| General | |||||||||||
| Maximum heat output | M. Kcal/hr | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 |
| Maximum working temperature | °C | 95/150 | 95/150 | 95/150 | 95/150 | 95/150 | 95/150 | 95/150 | 95/150 | 95/150 | 95/150 |
| Hot water Rise temperature | °C | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Hot Water Inlet/Outlet | MM | 40 | 50 | 80 | 80 | 100 | 100 | 125 | 150 | 150 | 200 |
| Heating surface area of heater | M² | 8 | 16 | 24 | 32 | 30 | 48 | 64 | 80 | 120 | 160 |
| Mode of Firing | Manual fired | ||||||||||
| Type of Fuel | Fuel | Wood Log, Briquette, Coal | |||||||||
| Boiler Efficiency | |||||||||||
| On Wood Log | % | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 |
| On Briquette | % | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 |
| On Coal | % | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 | 76 +/-2 |
| Fuel Consumption | |||||||||||
| Wood Log (3500) | Kg/hr | 33 | 66 | 99 | 132 | 164 | 197 | 263 | 329 | 493 | 658 |
| Briquette (4000) | Kg/hr | 29 | 58 | 88 | 117 | 146 | 175 | 234 | 292 | 439 | 585 |
| Coal (4500) | Kg/hr | 24 | 49 | 73 | 97 | 122 | 146 | 195 | 244 | 365 | 487 |
| Electrical Load | |||||||||||
| Circulation Water Pump | H.P. | 3.00 | 5.00 | 7.50 | 10.00 | 10.00 | 12.50 | 15.00 | 20.00 | 25.00 | 30.00 |
| ID fan with Motor | H.P. | 2.00 | 3.00 | 3.00 | 5.00 | 7.50 | 7.50 | 10.00 | 10.00 | 15.00 | 20.00 |
| Fd fan with Motor | H.P. | NA | NA | NA | NA | NA | NA | 3.00 | 5.00 | 7.5 | 10.0 |
| Total Electric Load | H.P. | 5.00 | 8.00 | 10.50 | 15.00 | 17.50 | 20.00 | 28.00 | 35.00 | 47.50 | 60.00 |
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | |||||||||||
