Description
ELECROPAC

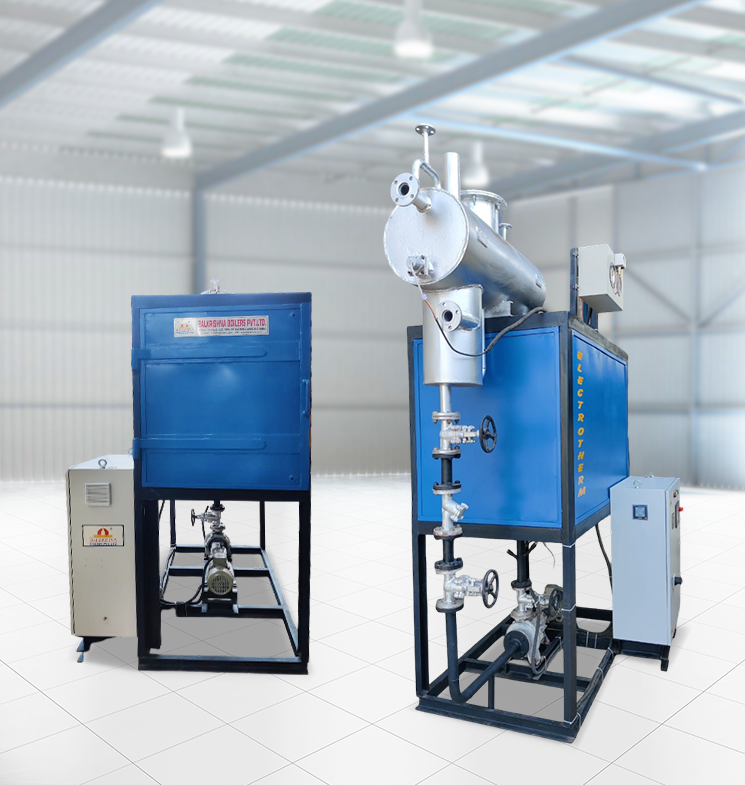

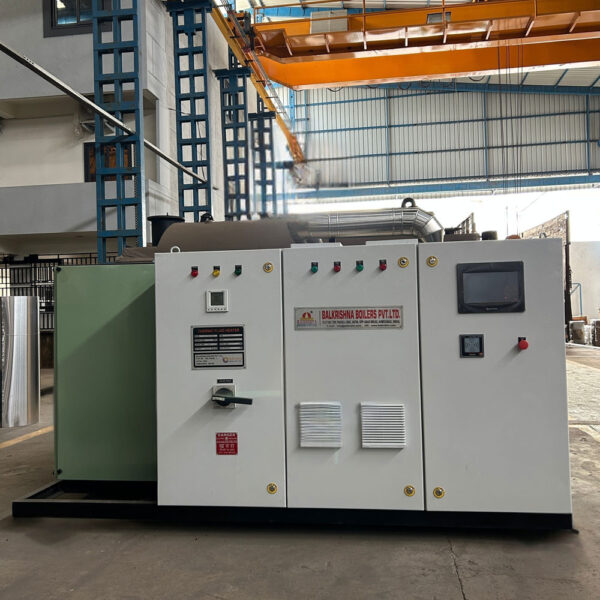

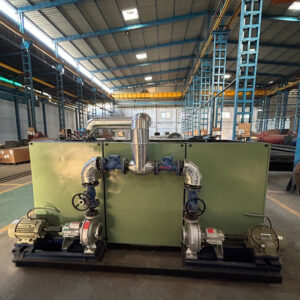

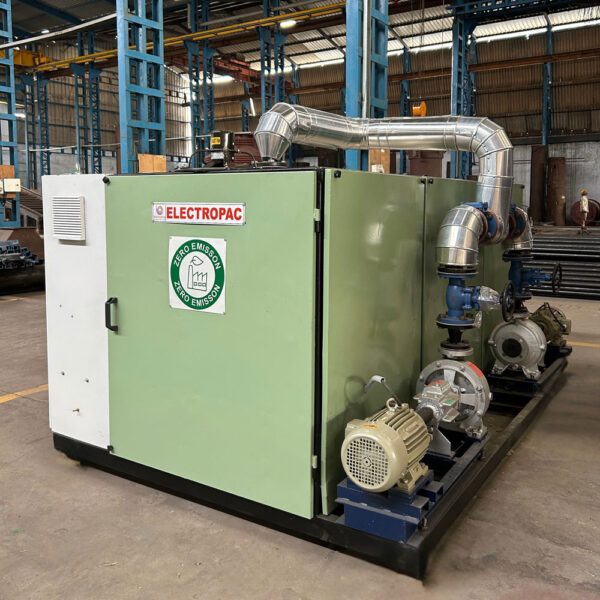

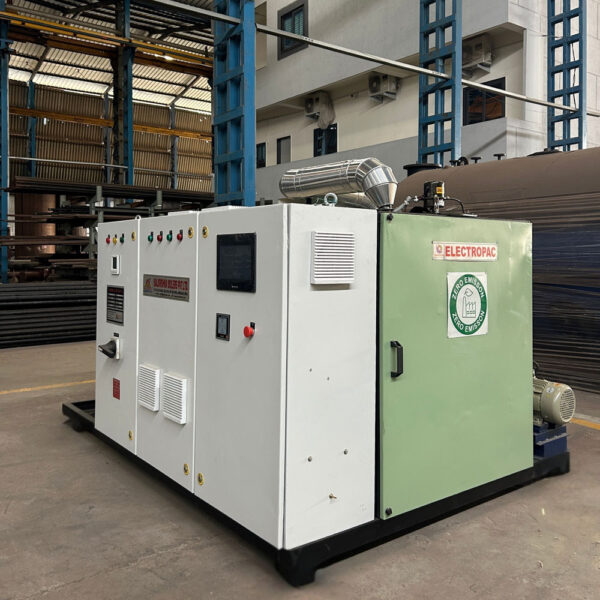

Electropac is a cutting-edge heating solution designed for maximum efficiency, safety, and user convenience. It features a high-temperature ceramic bobbin heater with Ni-Cr wire, ensuring fast and uniform heating without any direct oil contact, enhancing safety and longevity. It’s easy remove-or-insert design allows for quick maintenance and reduced downtime. The system is equipped with a Thyristor-based control panel for precise temperature management and a multiple zone design for an improved turndown ratio. Electropac is an eco-friendly solution with zero pollution output and requires no chimney, making it ideal for clean energy operations. It offers a better oil holding area, optimizing thermal performance and reducing operational costs. User-friendliness is at the core of its design, with integrated heaters and an outer canopy for added safety, a cooling exhaust near the bank heater area, and a special panel AC to maintain optimal conditions. Electropac is the future-ready solution for safe, clean, and efficient industrial heating.
Operating Range
- Capacity – 50,000 to 40,00,000 Kcal/hr.
- Fuel- Electric power
- Temperature- up-to 350℃
Technical Specifications
| Specification | Unit | EP-05 | EP-10 | EP-20 | EP-30 | EP-40 | EP-50 | EP-60 | EP-80 | EP-100 |
|---|---|---|---|---|---|---|---|---|---|---|
| General | ||||||||||
| heat Output K Cal/hr | KCal/hr | 50000 | 100000 | 200000 | 300000 | 400000 | 500000 | 600000 | 800000 | 1000000 |
| Maximum Outlet Temperature | °C | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Allowable ^T | °C | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Hot Oil Inlet/ Outlet | MM | 40 | 50 | 65 | 65 | 75 | 75 | 75 | 100 | 100 |
| Heat transfer Area | M² | 3.14 | 6.28 | 12.56 | 18.84 | 25.12 | 25.90 | 31.40 | 41.6 | 51.81 |
| Input Power | Volts | 415 V- 3Phase 50 Hz | ||||||||
| Type of Fuel | Fuel | Electric Power | ||||||||
| Boiler Efficiency | ||||||||||
| On Electric Heater | % | 98 +/-2 | 98 +/-2 | 98 +/-2 | 98 +/-2 | 98 +/-2 | 98 +/-2 | 98 +/-2 | 98 +/-2 | 98 +/-2 |
| Power Consumption | ||||||||||
| Electric Power (860 Kcal/KW) | KW/Hr | 60 | 120 | 240 | 360 | 480 | 594 | 720 | 954 | 1188 |
| Electrical Load | ||||||||||
| Circulation Oil Pump | H.P. | 3.00 | 5.00 | 7.50 | 10.00 | 10.00 | 12.50 | 15.00 | 20.00 | 25.00 |
| Input Heater Power | H.P. | 60 | 120 | 240 | 360 | 480 | 594 | 720 | 954 | 1188 |
| Total Electric Load | H.P. | 63.00 | 125.00 | 247.50 | 370.00 | 490.00 | 606.50 | 735.00 | 974.00 | 1213.00 |
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | ||||||||||
