Description

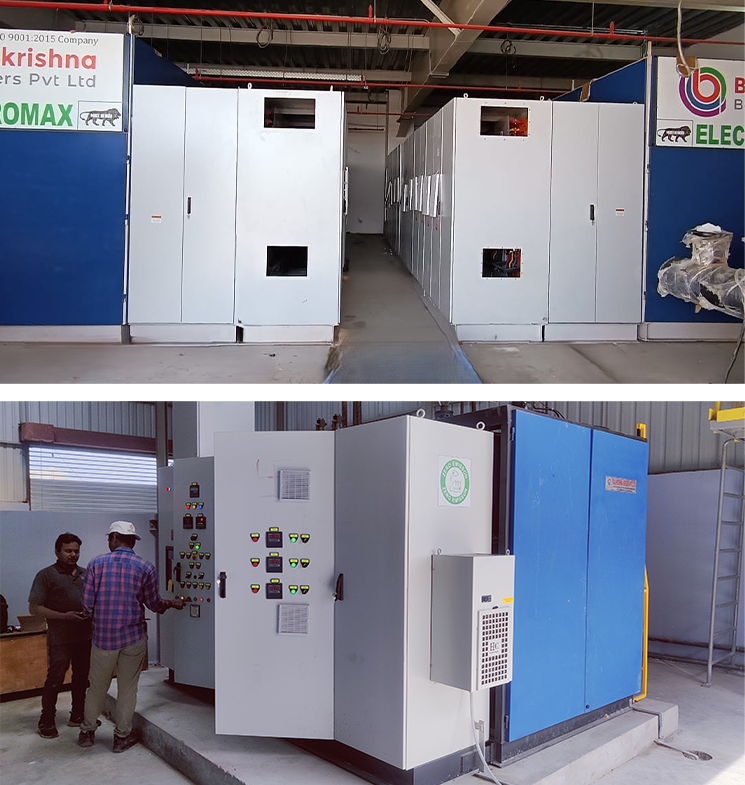

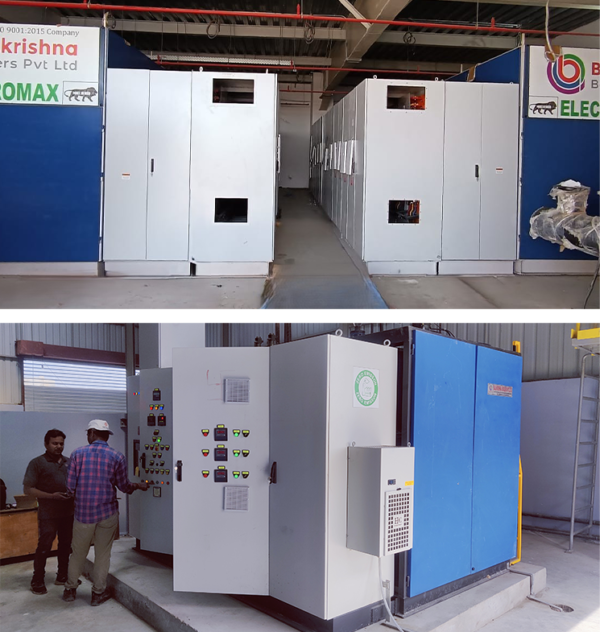

ELECTROMAX
The ELECTROMAX boiler is a shell and tube type horizontal package boiler. The ELECTROMAX is designed to operate on special type of ceramic bobbin heater. It is high performance and automatic operating through thyristor control system confirms to the most exacting standards of safety, performance and efficiency. This boiler is manufactured with the latest engineering techniques, modern production equipment and with the expertise of highly skilled engineers and workers.
ELECTROMAX boiler feature a robust design and wide range of regulation. In terms of installation, operation and maintenance alike, they are usually more economical than convectional boilers. As no chimney is needed and the mechanical wear is minimized. The electric boiler is extremely competitive and will improve the CO2 accounts.
Operating Range
- Capacity – 50 KG/HR to 5000 KG/HR
- Fuel- Electric power
- Pressure- 10.54 Kg/cm² to 21 Kg/cm²
Technical Specifications
| Specification | Unit | EM-24 | EM-36 | EM-66 | EM-132 | EM-192 | EM-258 | EM-324 | EM-384 | EM-522 | EM-648 | EM-963 | EM-1287 | EM-1602 | EM-1926 | EM-2574 | EM-3204 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| General | |||||||||||||||||
| Steam Output From & at 100°C | Kg/hr | 37 | 56 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Working Pressure | Kg/C M² | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 |
| Steam Temprature | °C | 183 | 183 | 183 | 183 | 183 | 183 | 183 | 183 | 184 | 185 | 185 | 185 | 185 | 185 | 185 | 185 |
| Input Power Required | K.W. | 24 | 36 | 66 | 132 | 192 | 258 | 324 | 384 | 522 | 648 | 963 | 1287 | 1602 | 1926 | 2574 | 3204 |
| Steam Outlet | MM | 15 | 20 | 20 | 25 | 25 | 25 | 40 | 40 | 50 | 50 | 80 | 80 | 80 | 100 | 100 | 125 |
| HTA | M² | 1.27 | 1.9 | 3.5 | 7.01 | 10.2 | 13.71 | 17.22 | 20.41 | 23.08 | 28.65 | 42.58 | 56.91 | 70.93 | 89.26 | 113.97 | 141.86 |
| Input Power(Volts): 415 V- 3Phase 50 Hz | |||||||||||||||||
| Type of Fuel: Electric Power | |||||||||||||||||
| Boilers Efficiency | |||||||||||||||||
| On Electric Heater | % | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 |
| Power Consumption | |||||||||||||||||
| Electric Power | KW/Hr | 24 | 36 | 66 | 132 | 192 | 258 | 324 | 384 | 522 | 648 | 963 | 1287 | 1602 | 1926 | 2574 | 3204 |
| Electrical Load | |||||||||||||||||
| Feed Water Pump | H.P. | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.50 | 1.50 | 2.00 | 2.00 | 3.00 | 3.00 | 4.00 | 4.00 | 4.00 | 6.00 |
| Input Heater Power | H.P. | 32.00 | 48.00 | 88.00 | 176.00 | 256.00 | 344.00 | 432.00 | 512.00 | 696.00 | 864.00 | 1284.00 | 1716.00 | 2136.00 | 2568.00 | 3432.00 | 4272.00 |
| Total Electric Load | H.P. | 33.00 | 49.00 | 89.00 | 177.00 | 257.00 | 345.00 | 433.50 | 513.50 | 698.00 | 866.00 | 1287.00 | 1719.00 | 2140.00 | 2572.00 | 3436.00 | 4278.00 |
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | |||||||||||||||||
