Zero local emissions | Peak-load grid responsiveness | Low maintenance heavy-duty engineering

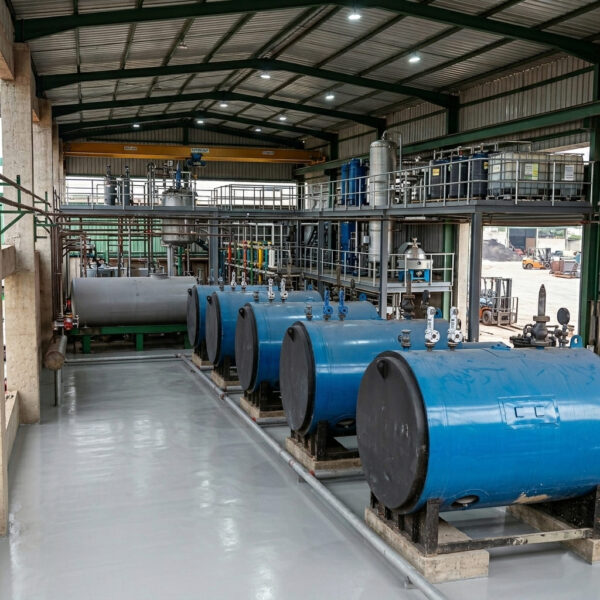

The ELECTROMAX 8000 KG/HR (8 Ton) Electric Boiler marks the entry into ultra-capacity industrial electrification, engineered specifically for massive manufacturing infrastructures. As emission caps tighten and multinational corporations transition to completely carbon-free supply chains, this high-performance system allows mega-plants to entirely eliminate polluting solid-fuel or gas boilers without altering their heavy process steam volumes.
Operating at this immense scale requires an optimized electrical strategy. The EM-5400 is purpose-built to tie directly into heavy-duty Medium-Voltage (690V) industrial grids. By taking advantage of this higher voltage potential, the boiler delivers a staggering 5400 kW of thermal input while minimizing line current draw (amperage). This protects your facility’s infrastructure by keeping copper cabling sizes manageable, reducing voltage drop across your switchgear, and slashing internal power distribution losses.
Built fully inline with the stringent regulations of the Indian Boiler Regulations (IBR), this horizontal, multi-bank package boiler offers a highly reliable, silent, and space-saving alternative for facilities demanding massive, continuous streams of dry saturated process steam.
Dominate Your Production Scale: The 8 Ton Edge
Upgrading to an 8000 KG/HR electric platform bypasses the heavy land, labor, and compliance costs associated with traditional multi-ton fossil fuel boiler plants.
| Operational Performance | 8 Ton EM-5400 Series Advantage | Industrial Plant Impact |
|---|---|---|
| Ultra-High Steam Volume | Massive, continuous 8000 KG/HR dry saturated steam delivery. | Seamlessly fulfills the peak utility loads of entire industrial clusters. |
| 690V Medium-Voltage Engineering | Advanced power distribution designed to handle high kW capacities with lower current loads. | Reduces switchgear wear, minimizes cable heat generation, and simplifies grid integration. |
| 99% Net Thermal Efficiency | Direct-immersion heat delivery converts nearly all incoming power to usable steam. | Eliminates the costly 20% to 35% exhaust stack energy wastage of coal or gas chimneys. |
| Full IBR Certifications | Inspected, approved, and stamped under rigorous Indian structural safety codes. | Guarantees absolute operation peace of mind and streamlined legal compliance. |
| Zero Stack Emissions | Completely smoke-free, ash-free, and noiseless operation. | Completely avoids SPCB chimney height mandates, environmental audits, and carbon penalties. |
Heavy-Duty System Architecture
Managing 5400 kW of continuous electrical energy and turning it into high-pressure steam requires a masterful combination of metallurgy and circuit design.
- Premium Grade Submerged Elements: The EM-5400 uses industrial-grade heating bundles made from specialized alloys (Incoloy or heavy-wall SS 316L) that are submerged directly into the boiler water column. This ensures near-instantaneous heat transfer, allowing the 8-ton boiler to climb from a dead stop to full working pressure in less than 20 minutes.
- Radiographed Pressure Vessel: Fabricated exclusively from high-tensile, IBR-approved SA 516 Grade 70 boiler-quality steel plates. Every single seam is subjected to 100% radiographic testing, certifying the vessel to safely maintain heavy continuous working pressures ranging from 10.54 kg/cm² up to 21 kg/cm².
- Advanced Thyristor Power Management: Rapidly cycling a 5400 kW load could shock an electrical grid. To prevent this, our custom control panels feature step-less thyristor modulation circuits. They shift power dynamically in highly precise increments, bringing element banks online or offline smoothly to match the real-time steam consumption of your plant.
- Industry 4.0 PLC Hub & Touch HMI: Standard equipped with a top-tier programmable logic controller (PLC) linked to a user-friendly touch screen. It monitors water levels, surface temperatures, and power efficiency across all phases, featuring native SCADA/DCS compatibility for fully automated plant networks.
Technical Specifications
| Specification | Unit | EM-66 | EM-132 | EM-192 | EM-258 | EM-324 | EM-384 | EM-522 | EM-648 | EM-963 | EM-1287 | EM-1602 | EM-1926 | EM-2574 | EM-3204 | EM-4050 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| General | ||||||||||||||||
| Steam Output (at 100°C) | Kg/hr | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 |
| Working Pressure | Kg/cm² | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 |
| Steam Temperature | °C | 183 | 183 | 183 | 183 | 183 | 183 | 184 | 185 | 185 | 185 | 185 | 185 | 185 | 185 | 185 |
| Input Power Required | kW | 66 | 132 | 192 | 258 | 324 | 384 | 522 | 648 | 963 | 1287 | 1602 | 1926 | 2574 | 3204 | 4050 |
| Steam Outlet | mm | 20 | 25 | 25 | 25 | 40 | 40 | 50 | 50 | 80 | 80 | 80 | 100 | 100 | 125 | 125 |
| HTA | m² | 3.5 | 7.01 | 10.2 | 13.71 | 17.22 | 20.41 | 23.08 | 28.65 | 42.58 | 56.91 | 70.93 | 89.26 | 113.97 | 141.86 | 180 |
| Input Power: 415 V – 3 Phase 50 Hz | Fuel: Electric Power | ||||||||||||||||
| Boiler Efficiency | % | 98±2 | 98±2 | 98±2 | 98±2 | 98±2 | 98±2 | 98±2 | 98±2 | 98±2 | 98±2 | 98±2 | 98±2 | 98±2 | 98±2 | 98±2 |
| Electrical Load | ||||||||||||||||
| Feed Water Pump | HP | 1.00 | 1.00 | 1.00 | 1.00 | 1.50 | 1.50 | 2.00 | 2.00 | 3.00 | 3.00 | 4.00 | 4.00 | 4.00 | 6.00 | 6.00 |
| Input Heater Power | HP | 88.00 | 176.00 | 256.00 | 344.00 | 432.00 | 512.00 | 696.00 | 864.00 | 1284.00 | 1716.00 | 2136.00 | 2568.00 | 3432.00 | 4272.00 | 4110.00 |
| Total Electric Load | HP | 89.00 | 177.00 | 257.00 | 345.00 | 433.50 | 513.50 | 698.00 | 866.00 | 1287.00 | 1719.00 | 2140.00 | 2572.00 | 3436.00 | 4278.00 | 4116.00 |
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | ||||||||||||||||
Multi-Level Safety & Circuit Safeguards
The 8-ton ELECTROMAX is engineered with heavy layers of protection to ensure zero-compromise plant safety:
- Isolated Element Bank Protection: The vast array of heating loops is split into independent electrical zones. If one section requires routine maintenance, it can be bypassed electronically, allowing the boiler to run safely at partial loads while keeping your assembly line moving.
- Triple Redundant Water Sensing: Uses an advanced electronic array of multi-probe liquid level sensors backed by mechanical float switches to instantly cut power if water levels fall below standard margins, protecting against dry-firing.
- Precision Mechanical Overpressure Relief: Fitted with dual IBR-certified high-capacity lift safety valves that physically vent pressure alongside electronic high-limit pressure cutoffs.
- Electrical Safety Enclosure: Integrated with premium ground-fault circuit breakers, rapid-acting over-current relays, and strict phase-balance monitoring to insulate your factory grid from any potential electrical fluctuations.
Heavy Industrial B2B Applications
The 8000 KG/HR capacity tier provides the immense thermal energy required to sustain heavy, continuous manufacturing lines:
- Large Textile Processing Hubs: Effortlessly runs huge groups of continuous dyeing machines, multi-layer stenters, and high-speed fabric processing lines without any risk of soot staining the products.
- Mega Pharmaceutical & Biotech Complexes: Provides massive volumes of ultra-pure steam for bulk active pharmaceutical ingredient (API) reaction vessels, large fermentation systems, and high-capacity sterilization lines.
- Chemical Refineries & Plants: Provides a completely flame-free, explosion-safe heating source ideal for dangerous, high-pressure chemical reactions, evaporation towers, and storage tank heating loops.
- Edible Oil & Food Processing Conglomerates: Delivers clean steam for large-scale continuous oil deodorization units, bleaching plants, and huge pasteurization systems.
