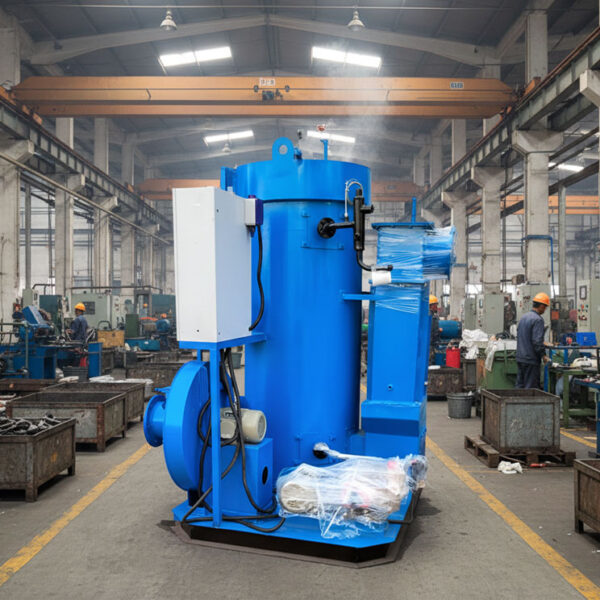

Oil Fired Steam Boiler: 300 Kg/hr (VEPOMAX Series)
Instant Steam. Industrial Strength. Ahmedabad Engineering.
At IndianBoilers.com, our 300 Kg/hr Oil Fired Steam Boiler is designed for high-efficiency performance where space is a premium and reliability is non-negotiable. Using a sophisticated 3-Pass Vertical Coil design, this boiler delivers high-quality dry steam in under 5 minutes, making it the most energy-efficient solution for your thermal needs.
Whether you are running a garment finishing unit, a food processing plant, or a pharmaceutical lab, our 300 Kg/hr unit offers the perfect balance of power and economy.
Key Performance Features
- Rapid Steam Generation: Don’t wait 45 minutes for steam. Our coil-type design goes from a cold start to full working pressure in just 4 to 6 minutes.
- High Thermal Efficiency: Achieve up to 88% ± 2% efficiency. Our specialized internal furnace design ensures every drop of fuel (HSD/LDO) is converted into maximum thermal energy.
- Fully Automatic Operation: Integrated with world-class burners (Riello/Bentone) and a smart control panel. Features include Push-Button Start, automatic pressure maintenance, and flame sensors.
- Space-Saving Vertical Design: Occupies 50% less floor space than traditional horizontal boilers. Ideal for urban industrial estates where every square foot counts.
- Safety Engineered: Equipped with multi-tier safety interlocks, including low-water cut-off, over-pressure trips, and a high-limit thermostat.
Applications in Focus
Our Ahmedabad-manufactured 300 Kg/hr boilers are trusted by:
- Garment Industry: For vacuum ironing tables and steam presses.
- Food Processing: For jacketed kettles, milk boiling, and sterilization.
- Pharmaceuticals: For small-batch autoclaving and chemical reactors.
- Hotels & Hospitals: For centralized laundry and high-capacity kitchen steam.
Operating Range
- Capacity : 200 KG to 850 KG
- Fuel : OIL, GAS, FO
- Pressure : 10.54 Kg/cm² to 21 Kg/cm²
Why IndianBoilers.com?
- Direct Manufacturer Pricing: Get the best rates directly from our Ahmedabad factory, eliminating middleman costs.
- Pan-India Service Network: With our team based in the heart of Gujarat’s industrial hub, we provide the fastest response times for installation and maintenance.
- No IBR Hassle: This model is designed to fall under the Non-IBR category, allowing you to operate without a certified boiler attendant and reducing regulatory paperwork.
- Ready Stock Spares: We maintain a full inventory of coils, burners, and pumps to ensure your production never stops.
Technical Specifications
| Specification | Unit | VX-02 | VX-03 | VX-04 | VX-05 | VX-06 | VX-08 | VX-10 |
|---|---|---|---|---|---|---|---|---|
| General | ||||||||
| Steam Output From & at 100°C | Kg/hr | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Working Pressure | Kg/CM² | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 |
| Steam Temperature | °C | 183 | 183 | 183 | 183 | 183 | 183 | 183 |
| Efficiency (On Oil) | % | 88% +/-2 | 88% +/-2 | 88% +/-2 | 88% +/-2 | 88% +/-2 | 88% +/-2 | 88% +/-2 |
| Efficiency (On Gas) | % | 87% +/-2 | 87% +/-2 | 87% +/-2 | 87% +/-2 | 87% +/-2 | 87% +/-2 | 87% +/-2 |
| Type of Fuel: HSD, LPG, NG, FO, LDO | ||||||||
| Fuel of Firing: Pressure Jet – Reverse Fuel Dual Block | ||||||||
| Fuel Consumption | ||||||||
| Diesel (10500) | Kg/hr | 12 | 18 | 23 | 29 | 35 | 47 | 58 |
| Furnace Oil (9600) | Kg/hr | 13 | 19 | 26 | 32 | 38 | 51 | 64 |
| LDO (10200) | Kg/hr | 12 | 18 | 24 | 30 | 36 | 48 | 60 |
| LPG (11000) | Kg/hr | 11 | 17 | 23 | 28 | 34 | 45 | 56 |
| Natural Gas (8900) | M³/hr | 14 | 21 | 28 | 35 | 42 | 56 | 70 |
| Electrical Load | ||||||||
| Feed Pump | H.P. | 1.00 | 1.00 | 1.00 | 2.00 | 2.00 | 3.00 | 3.00 |
| FD Fan | H.P. | 1.00 | 1.00 | 2.00 | 2.00 | 3.00 | 3.00 | 5.00 |
| Fuel Pump (Oil) | H.P. | 0.50 | 0.50 | 0.50 | 1.00 | 1.00 | 1.00 | 2.00 |
| Heater (FO) | H.P. | 0.00 | 0.00 | 5.00 | 5.00 | 7.50 | 7.50 | 10.00 |
| Total Power | H.P. | 2.50 | 2.50 | 8.50 | 9.50 | 12.50 | 14.50 | 20.00 |
| Dimension and Weight | ||||||||
| Length | MM | 1300 | 1500 | 1500 | 1500 | 1500 | 1800 | 2000 |
| Width | MM | 1100 | 1300 | 1300 | 1400 | 1400 | 1500 | 1500 |
| Height | MM | 1650 | 2200 | 2200 | 2500 | 2500 | 3000 | 3500 |
| Weight | Kg | 950 | 1100 | 1100 | 1200 | 1200 | 1400 | 1600 |
| Chimney Size | MM | 180 | 225 | 250 | 275 | 300 | 350 | 400 |
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | ||||||||
