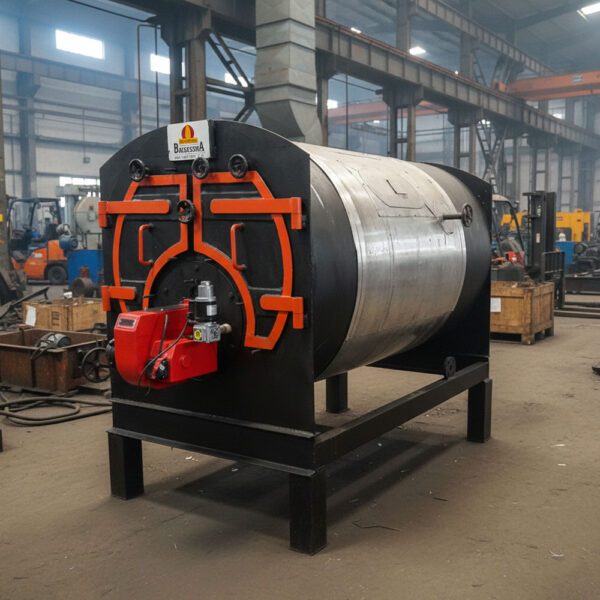

SIB Series: Semi Industrial Boiler
Compact | High Performance | S-IBR Advantage
The SIB (Semi Industrial Boiler) Series by IndianBoilers.com is engineered for small to medium-scale industries that require a robust steam solution with minimal regulatory hurdles. Designed as a compact, skid-mounted unit, the SIB series bridges the gap between small boilers and heavy-duty industrial plants, offering high efficiency and easy installation.
Whether you need a horizontal or vertical configuration, the SIB series is built to deliver high-dryness steam while optimizing fuel and space.
Operating Range
- Capacity: 100 Kg/hr to 500 Kg/hr
- Fuel: Coal, Wood, Gas, Oil, or Electrical Power
- Pressure: 7.00 Kg/cm²
Key Features & Advantages
- S-IBR Range Advantage: These boilers fall under relaxed norms, which eliminates the need for a certified boiler operator, saving you significant monthly operational costs.
- Compact & Skid-Mounted: SIB units are pre-piped, pre-insulated, and pre-wired. They occupy a very low footprint compared to conventional boilers, making them ideal for space-constrained factories.
- High Efficiency:
- * 70% ±2% efficiency on Solid Fuels (Wood/Briquettes).
- 85% ±2\% efficiency on Oil and Gas.
- Innovative Steam Separation: Equipped with a specialized steam separation mechanism to ensure high-quality dry steam for your process.
- Condensate Recovery: Built to accept 100% condensate return, ensuring maximum energy utilization and water conservation.
- Simple Installation: Designed for inexpensive and quick setup; essentially a “plug-and-play” industrial steam solution.
Core Industry Applications
The IndianBoilers.com SIB Series is the preferred choice for:
- Food Processing: Efficient steam for boiling, drying, and batch cooking.
- Pharmaceuticals: Reliable heat for sterilization and reactor jackets.
- Laundries & Textiles: High-pressure steam for finishing and washing units.
- Chemical Industries: Stable temperature control for mid-sized processing tanks.
Technical Specifications
| Model | HX-series | VX-series | JX-Series | |
|---|---|---|---|---|
| Specification | Unit | HX-04 | VX-04 | JX-05 |
| General | ||||
| Steam Output (at 100°C) | Kg/hr | 400 | 400 | 500 |
| Working Pressure | Kg/cm² | 7.00 | 7.00 | 7.00 |
| Steam Temperature | °C | 164 | 164 | 164 |
| No. of Passes | Qty | 2 | 1 | 2 |
| No. of Furnaces | Qty | 1 | 1 | 1 |
| Steam Outlet | mm | 25 | 25 | 25 |
| HTA | m² | 15 | 16 | 13 |
| Type of Fuel | Fuel | Solid | Solid | Oil/Gas |
| Boiler Efficiency | ||||
| On Woodlog & Briquette | % | 70 ± 2 | 70 ± 2 | — |
| On Oil and Gas | % | — | — | 85 ± 2 |
| Fuel Consumption | ||||
| WoodLog (3500) | Kg/hr | 88 | 88 | 0 |
| Briquette (4000) | Kg/hr | 77 | 77 | 0 |
| N.G. (9600) | m³/hr | 0 | 0 | 33 |
| Diesel (10500) | Kg/hr | 0 | 0 | 30 |
| Electrical Load | ||||
| Feed Water Pump | H.P. | 2.00 | 2.00 | 2.00 |
| I.D. Fan (without BF) | H.P. | 3.00 | 0.00 | 0.00 |
| F.D. Fan | H.P. | 0.00 | 0.00 | 2.00 |
| Total Electric Load | H.P. | 5.00 | 2.00 | 4.00 |
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | ||||
Frequently Asked Questions
Is a certified boiler operator required for the SIB series?
No, because it falls under the S-IBR range with relaxed norms.
What is the capacity range of the SIB series?
It ranges from 100 Kg/hr to 500 Kg/hr.
What fuels can the SIB-HX series use?
It is designed for solid fuels like wood logs, coal, and briquettes.
What is the efficiency of the SIB on wood?
It offers approximately 70% ± 2% efficiency.
