Oil & Gas Small Industrial Boiler
High Capacity | Dual-Fuel Versatility | 500 Kg/hr Powerhouse

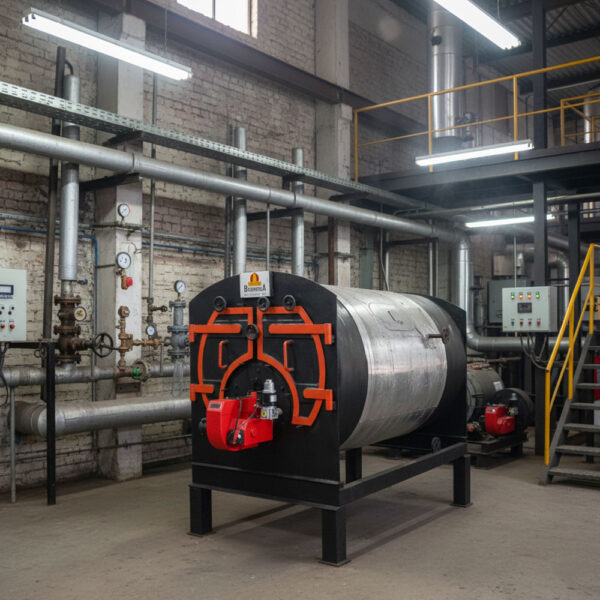

The Oil And Gas Small Industrial Boiler JX-05 Series by IndianBoilers.com represents the peak of our Small Industrial Boiler (SIB) range. Specifically engineered for the 500 Kg/hr capacity segment, the JX-05 is a horizontal, multi-pass unit designed to handle the rigorous demands of mid-sized industrial processes.
Equipped with high-efficiency burners and advanced smoke-tube technology, the JX-05 delivers consistent, high-pressure steam while offering the flexibility to switch between Natural Gas, LPG, and Diesel (HSD).
Key Features
- High Steam Output: Provides a robust 500 Kg/hr (0.5 TPH) of steam, ideal for facilities that have outgrown smaller 100–300 Kg/hr units.
- Dual-Fuel Ready: Features a universal burner mounting plate, allowing for seamless integration of Gas or Oil burners depending on your local fuel pricing and availability.
- Optimal Thermal Efficiency: Achieves an impressive $85\% \pm 2\%$ efficiency, significantly reducing daily fuel costs compared to older conventional designs.
- S-IBR Benefit: Despite its higher capacity, it remains within the Small Industrial Boiler (SIB) category, meaning you can operate it without a certified IBR boiler attendant.
- Rapid Response: Reaches full working pressure in minutes, minimizing downtime during shift starts.
- Advanced Smoke-Tube Design: The multi-pass smoke-tube architecture ensures maximum heat transfer from the flue gases to the water, resulting in lower chimney temperatures and higher fuel savings.
Best-Fit Industry Applications
The JX-05 Series is a “Workhorse” for:
- Mid-Sized Pharma: High-pressure steam for large autoclaves and process vessels.
- Food & Dairy: Pasteurization, large-scale cooking, and CIP (Clean-in-Place) sterilization.
- Textiles: For high-capacity washing, specialized dyeing, and ironing sections.
- Hospitals & Hotels: Centralized laundry and surgical sterilization centers requiring 24/7 reliability.
Technical Specifications
| Model | HX-series | VX-series | JX-Series | |
|---|---|---|---|---|
| Specification | Unit | HX-04 | VX-04 | JX-05 |
| General | ||||
| Steam Output (at 100°C) | Kg/hr | 400 | 400 | 500 |
| Working Pressure | Kg/cm² | 7.00 | 7.00 | 7.00 |
| Steam Temperature | °C | 164 | 164 | 164 |
| No. of Passes | Qty | 2 | 1 | 2 |
| No. of Furnaces | Qty | 1 | 1 | 1 |
| Steam Outlet | mm | 25 | 25 | 25 |
| HTA | m² | 15 | 16 | 13 |
| Type of Fuel | Fuel | Solid | Solid | Oil/Gas |
| Boiler Efficiency | ||||
| On Woodlog & Briquette | % | 70 ± 2 | 70 ± 2 | — |
| On Oil and Gas | % | — | — | 85 ± 2 |
| Fuel Consumption | ||||
| WoodLog (3500) | Kg/hr | 88 | 88 | 0 |
| Briquette (4000) | Kg/hr | 77 | 77 | 0 |
| N.G. (9600) | m³/hr | 0 | 0 | 33 |
| Diesel (10500) | Kg/hr | 0 | 0 | 30 |
| Electrical Load | ||||
| Feed Water Pump | H.P. | 2.00 | 2.00 | 2.00 |
| I.D. Fan (without BF) | H.P. | 3.00 | 0.00 | 0.00 |
| F.D. Fan | H.P. | 0.00 | 0.00 | 2.00 |
| Total Electric Load | H.P. | 5.00 | 2.00 | 4.00 |
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | ||||
Frequently Asked Questions
What fuels can the JX-05 run on?
It is compatible with Natural Gas, LPG, Diesel, and LDO.
Is it an IBR boiler?
It falls under the Small Industrial Boiler (SIB) regulations, offering relaxed compliance norms.
Do I need a certified operator?
No, a certified IBR attendant is not required for this SIB series.
What is the efficiency of the JX-05 on Gas?
It operates at 85% ± 2% efficiency.
